For systems powered by DC sources such as batteries or Hydrogen fuel cells, it is often necessary to have a DC-DC converter that takes in unregulated input voltage and provides a stable output voltage to the load. Here are 3 reasons why Spectronik’s Cerebral-55 Smart DC-DC Converter is the ideal voltage regulating device!
1. Compact, powerful and efficient
Weighing just 1.5kg, Cerebral-55 can deliver up to 5500W of stable output power at >96% efficiency. It can also accept a wide input voltage range (15-90VDC) and produce a user configurable output of 12-90VDC.
2. Packed with smart features and functions
Setting up Cerebral-55 is extremely easy! Through the PC GUI, user can set the desired Voltage, Current and Ramp-rate values and turn on the power output with just a single flick of a switch. User can also monitor system parameters live and log the data via the PC GUI. Should there be any error, Cerebral-55 will deliver a warning message or automatically shut down to protect the system. Cerebral-55 also comes with integrated heat sink and cooling fans for optimal thermal control.
3. Current Ramping suitable for Hydrogen fuel cells
Cerebral-55 has a Current Ramping function designed specifically for DC sources like Hydrogen fuel cell which may take time to deliver its full output power. In such scenario, it is vital for load Current to be applied gradually to protect the power source from sudden spikes in the load Current demand. With Cerebral-55, user can turn on the Current Ramping function and set the output Current slew rate from 1A/s to 20A/s.
Cerebral-55 is developed using the best power conversion solutions and technical support from our industry partners Synqor and Apps-Connect.
Watch The Cerebral-55 Video Below
Playing loads the video from YouTube.

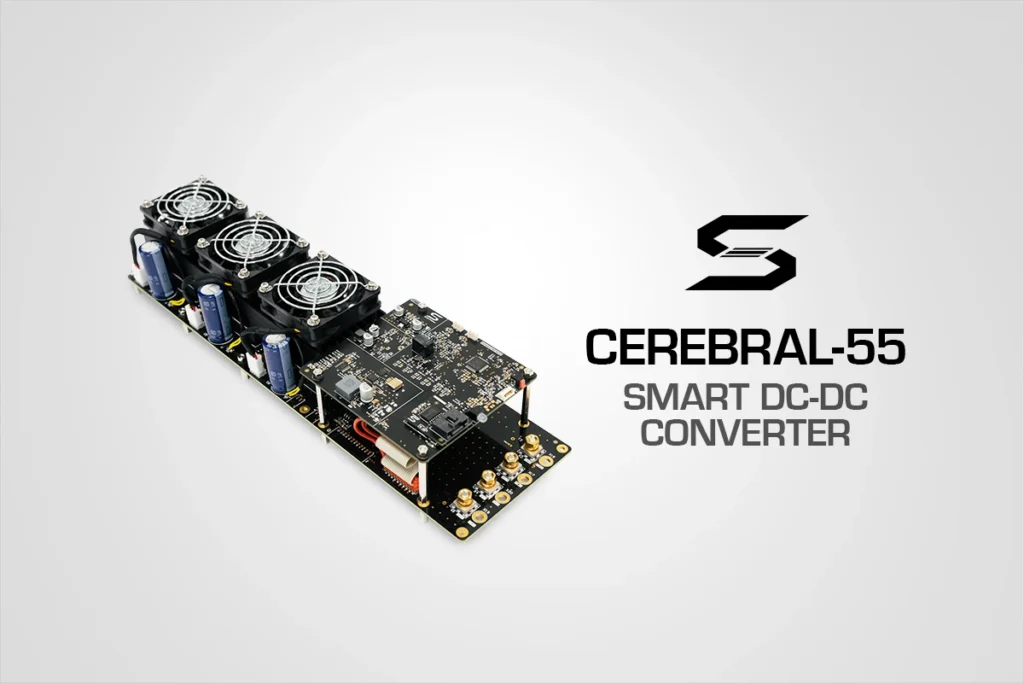

CEREBRAL-55 is a 5500W regulated, non-isolated, buck-boost DC-DC converter with smart control functions. With wide input (15-90V) and
output (12-90V) voltage ranges, high conversion efficiency (94-97%) and compact form-factor (<1.5kg), CEREBRAL-55 is one of the highest
performance DC-DC converters available in the market.
ELECTRICAL SPECIFICATIONS
| Isolation [1] | Non-isolated DCDC |
|---|---|
| Input V [2] [3] | 15 to 90V |
| Input I max | 75A |
| Output V range [4] [5] | 12 to 90V |
| Output I limit range [4] | 2 to 75A |
| Output current ramping [4] | 1 to 20A/s |
| Rated max Power [6] | 5500W |
| Efficiency | 94 – 98% |
| Start-up Duration [7] | < 1700ms |
MECHANICAL SPECIFICATIONS
|
Mass with Heatsink & fan | 1460 g |
|---|---|
|
Size L x W x H | 360 x 100 x 90 mm (with spacers) |
|
Power Cables Connections | Lug connection for M5 male with Nut |
|
Mounting | 10 x ∅3.2mm or M3 spacers |
|
Advised ambient temperature | − 15 to 60 °C |
|
Advised temperature threshold [6] [8] | < 80 °C on converter |
[1] UART communication port is isolated.
[2] Non-operating Input max 99V.
[3] Input Over-Voltage shutdown during operation, if > 90V.
[4] Programmable settings through GUI during start-up via comm port with PC.
[5] Might require a minimum load of 0.5A for tighter tolerance at Output V.
[6] Output current derates when > 80 °C.
[7] System boot-up, about 1200ms automatically when there is input power. Max power output in about 500ms, after switch is turned on.
[8] High-Temperature shutdown, if > 105 °C.
FEATURES
- Wide input & output voltage ranges
- User-configurable Voltage and Current output via GUI
- User-configurable Current output ramp rate via GUI
- Power output On/Off switch
- Live monitoring of input Current and Voltage from source
- Live data logging (csv file) via GUI
- Load sharing among the internal DC-DC modules
- Inrush Current limiter
- Integrated thermal control with heat sink and cooling fans
- Applicable for battery charging
(voltage output droop while maintaining set Current output)
WHAT’S IN THE BOX
- Cerebral-55 Smart DC-DC Converter
- UART-to-USB Cable
- Extra spacers and nuts
CONVERTER SAFTEY FEATURES
CAN/CSA-C22.2 No.60950-1:2007/A2:2014
UL 60950-1:2007/A2:2014
EN 60950-1:2006/A2:2013
*Converter modules only
PRODUCT CODE
C-55-1590-75-S
The Cerebral-55 Smart DC-DC Converter is available for purchase at our online shop!
